Description

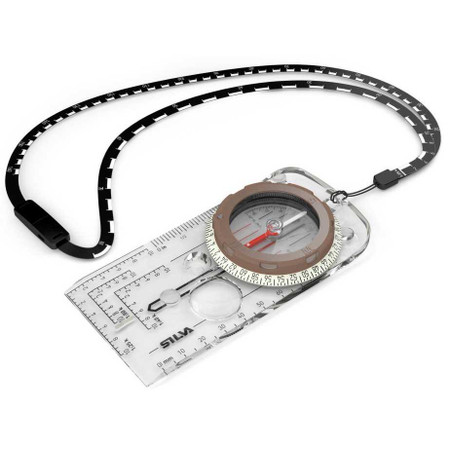

Silva 5-6400/360 Mils Compass

The SILVA 5-6400/360 is a full-sized military baseplate compass for experienced navigators and used by NATO Forces around the world.

Additional features include measuring scales for positioning (GPS), graduation in mils and degrees (6400/360), integrated adjuster for magnetic declination, magnifying lens and rubber feet for precision map work. This compass has a luminous graduation ring and markings for night use, giving up to 4 hours of light once activated by daylight/flashlight. The scale lanyard and slope card makes it easier to quickly calculate distances.

Features:

• measuring scales for positioning (GPS)
• graduated in mils and degrees (6400/360)
• magnifying glass
• slope card and scale lanyard
• declination adjustment
• clinometer
• luminous markings – illuminates for up to 4 hours after activation
• rubber feet for precision map work
• 5-year warranty

Specifications:

• Article number: 37585
• Accuracy: ± 1° (17.8 mils)
• Altitude use: 5000m @-15 °C
• Attachment: Detachable safety-release scale lanyard, Slope card
• Clinometer: Yes
• Declination adjustment: Yes
• Graduation: 6400° / 360°
• Illumination: 4 hours after activation in light, Luminous markings
• Impact resistance: 30g in XYZ directions and free fall from 1.5 m height into gravel
• Magnifying lens: Yes
• Material: Acrylic, PC/ABS, TPU
• Resolution degrees / mils: 2 / 50
• Sapphire jewel bearing for friction-free movement of the compass needle: Yes
• Scales: Baseplate: 1:25k, 1:40k, 1:50k, mm, inch, Lanyard; 1:25, / 1:50
• Settling time from 90° angle to complete rest: 5 sec
• Settling time from 90° angle within ± 3°: 2.7 sec
• Sighting System: No
• Silicon friction feet: Yes
• Type of compass: SILVA 1-2-3, baseplate
• Temperature operating range: -30 to +60 C
• Patented red/black N/S lines in capsule: Yes
• Turnable capsule: Yes
• UTM position plotting scales (Romer scales): 1:25k, 1:40k, 1:50k
• Weight: 50 grams
• Size: 126 x 60 x 13 mm
• Variant: MS – magnetic south
