Military Protractor MGRS/UTM

$19.99

Size:12.5cm x 12.5cm

In stock

SKU: 824249150032 Category:

Description

Military Protractor MGRS/UTM

This Military Protractor features a MILS outer scale and Degrees inner scale and is a far superior product than the issued military protractor.

Quickly and accurately locate 8-figure grid references with the graduated 1:25,000 scale – ask in store for a demo.

Features

  • 1:25,000 Scale Roamer (Highly accurate to 8-figure grids)
  • 1:50,000 Scale Roamer
  • 1:100,000 Scale Roamer
  • Square design with rounded corners – no sharp corners to wear holes in pockets.

Using the roamer

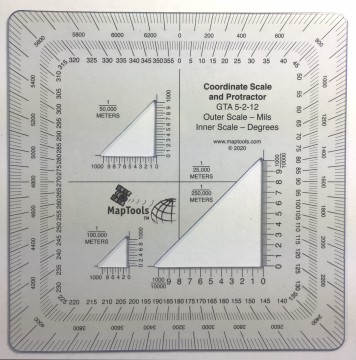

In the example image above:

  1. Select the correct roamer triangle for your scale of map
  2. Place the bottom horizontal edge of the roamer triangle on the Northing line
  3. Keeping that line on the northing, slide across until the vertical, right edge of the roamer triangle is on the desired location – In the image it’s the 739 spot height
  4. Read coordinates, eastings then northings – in the example image here, the MGRS Grid Location of the 739 Spot Height is 6260 9625
